Application Areas: Widely used in building materials, ore crushing, transportation, energy, chemical and other industries

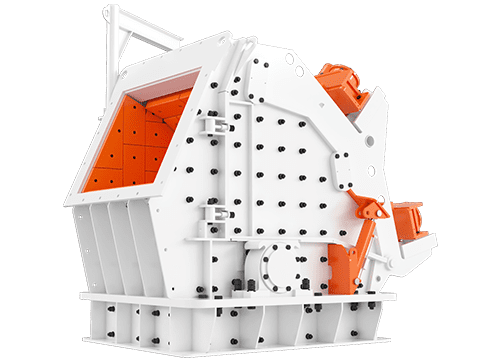

CF impact crusher can realize conversion between coarse crushing and medium and fine crushing and is used for both purposes. It is suitable for coarse, medium, fine, and other operations with various materials (granite, limestone, concrete, etc.) with a resistance strength not exceeding 350 MPa. It is widely used in mining, construction, chemical, electric power, metallurgy, and other industries.
1. By adjusting the installation position of the impact rack, the conversion between coarse crushing and medium-fine crushing can be achieved, and one machine can be used for both purposes;
2. The feed opening is larger and can be used for primary crushing during coarse crushing. The maximum feeding capacity is 1000mm;
3. When crushing construction waste, it can effectively prevent steel bars from being entangled;
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.
CF large diameter impact crusher uses impact energy to crush materials. When the machine is working, the motor drives the rotor to rotate at a high speed. After the materials enter the rotor, they impact and break with the plate hammer on the rotor, and then bounce back from the reaction lining plate to the plate hammer action area for re breaking. This process is repeated. The materials enter the first, second and third reaction chambers from large to small for repeated breaking until the materials are broken to the required particle size and are discharged from the discharge port. Adjusting the clearance between the reaction frame and the rotor can change the particle size and shape of the material.
Model | Feed Inlet Size(mm) | Max Feed Side Length(mm) | Processing Capacity (t/h) | Power(kW) | Weight(kg) |
CF150 | 820×980 | 750 | 100-200 | 90-200 | 12000 |
CF250 | 960×1360 | 900 | 200-400 | 180-250 | 17000 |
CF350 | 1050×1700 | 1100 | 300-500 | 200-400 | 24000 |
