Application Areas: Glass, slime, river sand, quartz sand, natural sand, mechanical sand, mud, etc.

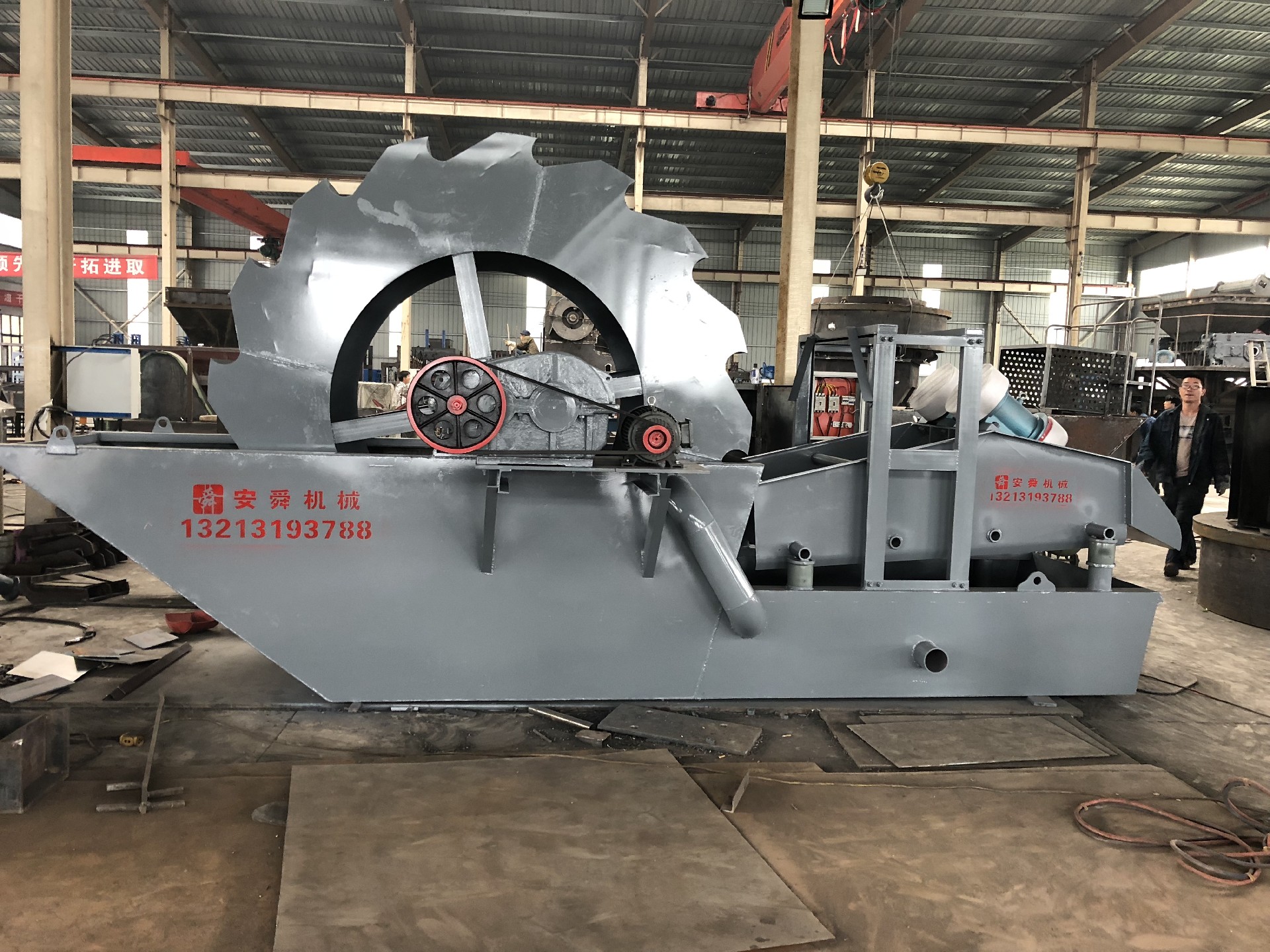

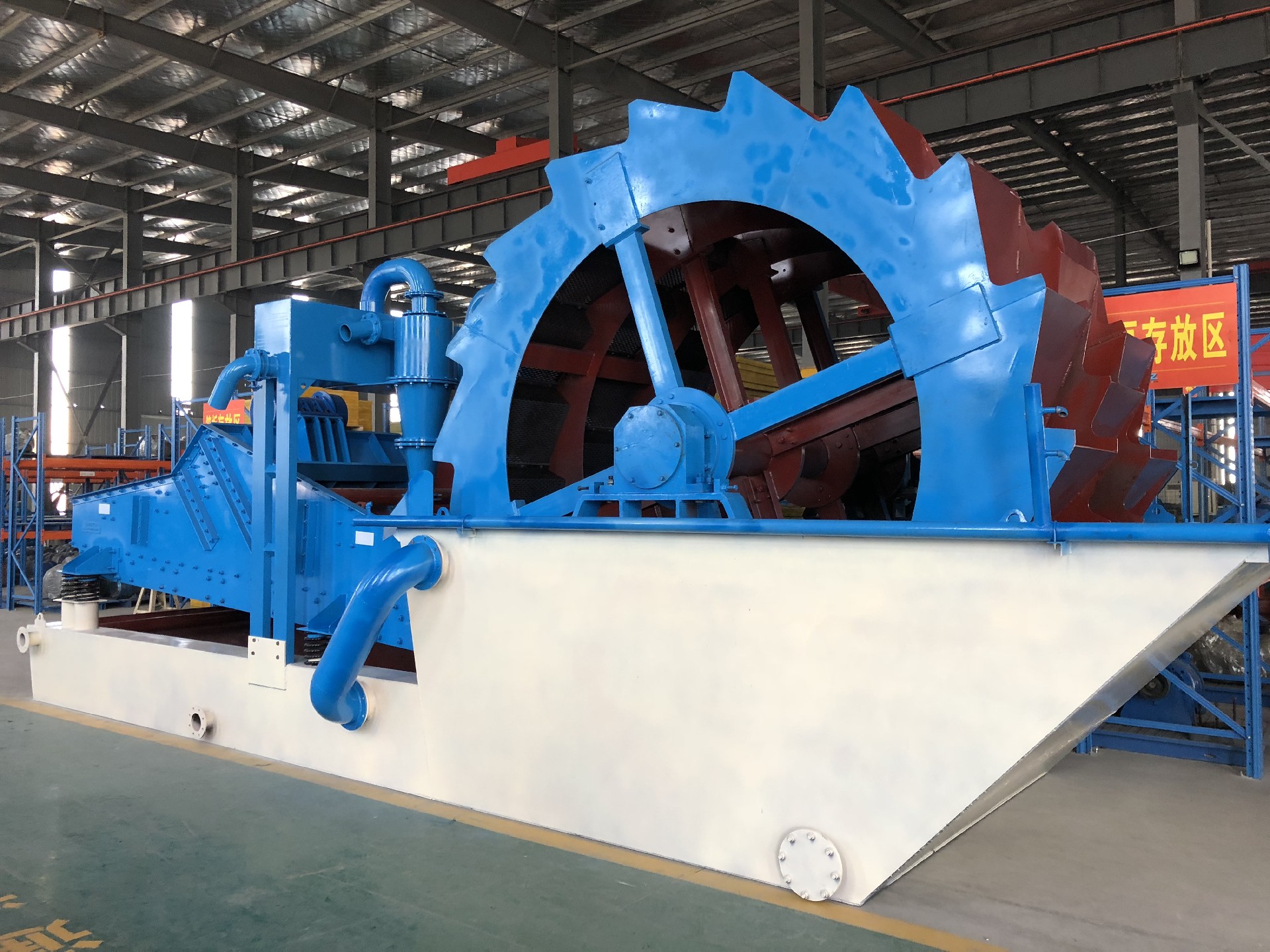

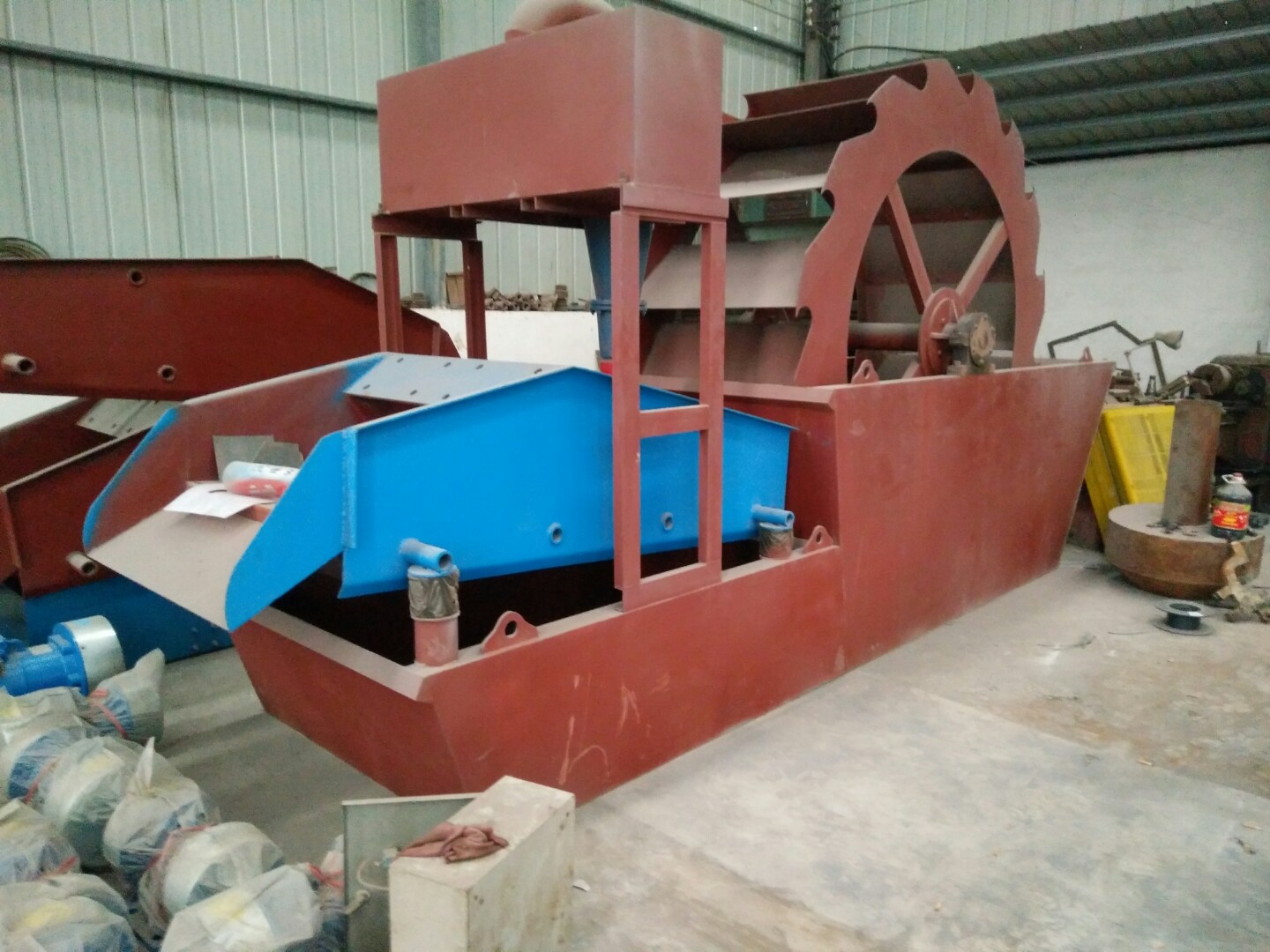

Sand washing and recycling machine is a new type of product developed and produced by Henan Anshun Machinery Equipment Co., LTD., which has continuously innovated and discussed with customers for many years. The machine has reasonable structure, small footprint and high efficiency. In traditional sand washing, the loss of fine sand is serious, which occupies an area and occupies labor. The function can effectively control the loss of fine sand, improve the quality of sand, control the flow of sand in concrete and reduce the amount of cement. Increase the economic benefit of sand washing plant.
1. Combined with the characteristics and advantages of sand washing machine and fine sand recycling machine, it has the function of washing sand and fine吗 sand dehydration and recycling, which is cleaner than the traditional sand washing machine and has good sand and price.
2, long service life, low maintenance cost.
3, the machine has high working efficiency, low energy consumption, energy saving and environmental protection.
4. Special models can be built according to different demands.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.
1, structure: By high pressure separator, dewatering screen, impeller separator, reducer, vacuum high pressure pump, cleaning box, high return water tank, motor, vibration motor and other components.
2. Working process: The sand-water mixture enters the cleaning box, is separated by the impeller separator, and then enters the lower dewatering screen for dewatering treatment. The wastewater overflow from the cleaning box (containing a large amount of fine sand, mud, dust and other impurities) is transported to the high pressure separator through the vacuum high pressure pump, and then the concentrated fine sand is centrifuged and discharged into the upper layer of the dewatering screen through the settling nozzle. The wastewater, mud, dust and impurities in the box are cleaned. Through the overflow port of the high pressure separator, it is discharged into the high level and returned to the water tank. The upper level is discharged with coarse sand, the lower level is discharged with fine sand, or the mixture of coarse and fine sand (can be adjusted according to requirements)
Model | XSHJX-2630 | XSHJX-2635 | XSHJX-3050 | XSHJX-3060 | XSHJX-3070 |
Motor(Kw) | 7.5KW/set | 7.5KW/set | 15KW/set | 15KW/set | 18.5KW/set |
15KW/台 | 18.5kW/set | 18.5KW/set | 15KW/set(2) 2.2KW/set(2) | 18.5KW/set(2) 2 . 2KW/set(2) | |
1.5KW/台(2) | 1.5KW/set(2) | 2.2KW/set(2) | 2.2KW/set(2) | 2.2KW/set(2) | |
Capacity(t/h) | 20-50 | 20-50 | 50-120 | 50-120 | 120-180 |
Finesand Capacity(t/h) | 45294 | 45359 | 45359 | 45583 | 45646 |
Water Processing | 30-100 | 80-110 | 80-120 | 130-200 | 180-300 |
overall dimensions(mm) | 5720×2125×2670 | 5720×2125×2850 | 6300×2686×2750 | 6300×2686×2900 | 6300×2686×3000 |
