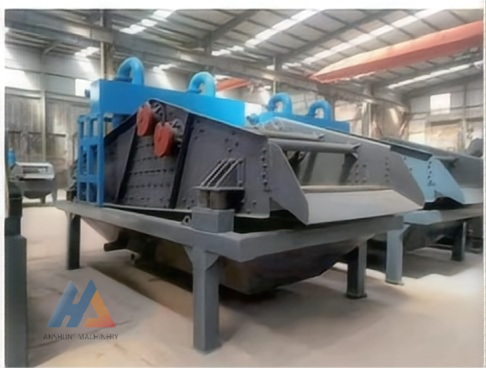

Application Areas: TS series dewatering screens are widely used in coal, chemical, environmental protection, electric power, sugar, salt and other industrial sectors.
Large processing capacity and high screening efficiency:
TS series dewatering screen has advanced design. Through high-frequency vibration technology, the material can be quickly separated on the screen surface, which improves the screening efficiency.
Good dewatering effect:
TS series dewatering screen can achieve efficient dehydration of materials, reduce the moisture content of materials and improve product quality by optimizing the screen structure and vibration parameters.
Energy saving and environmental protection:
Adopting advanced vibration technology and energy-saving design, the TS series dewatering screen has low energy consumption during operation, which meets the current social requirements for environmental protection and sustainable development.
Strong adaptability:
TS series dewatering screen has strong adaptability and can handle materials of different particle sizes and properties. Whether it is coarse or fine particles, it can achieve efficient screening and dehydration.
Long screen life and easy maintenance:
The screen of TS series dewatering screen adopts polyurethane screen with high wear resistance and long service life. The size of the screen hole can be adjusted and customized according to user needs. Reinforcement ribs are provided under the screen to extend the service life of the screen. At the same time, the compact structure and reasonable design of this series of dewatering screens make the maintenance of the equipment more convenient.
Easy to operate:
The TS series dewatering screen adopts an intelligent control system, which is easy to operate and reduces the labor intensity of operators.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

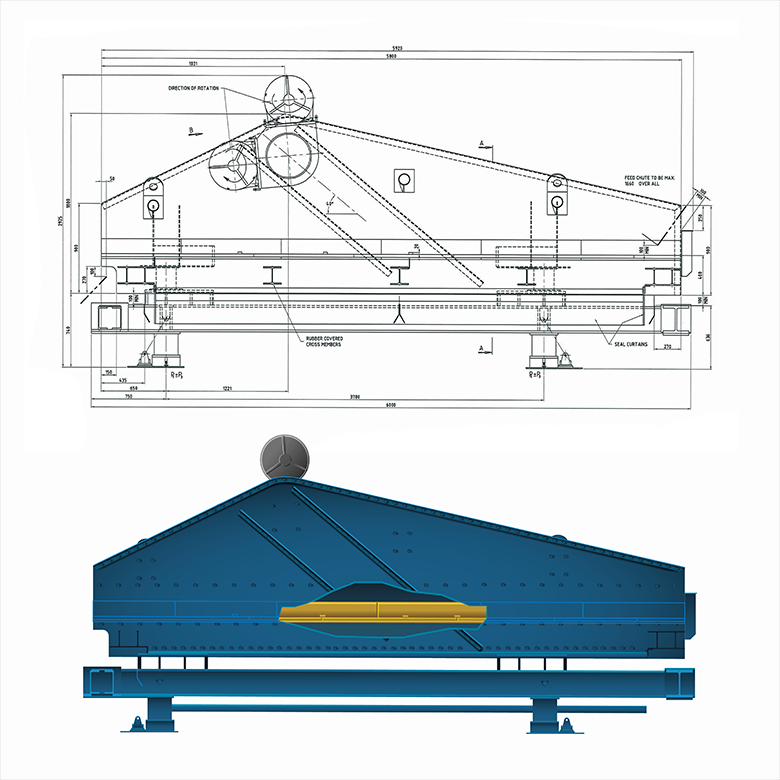

TS series dewatering screens mainly rely on the exciting force generated by the vibration motor to achieve the dehydration and classification of materials. This series of dewatering screens are usually equipped with synchronous counter-rotating vibration motors. When the motors are running, they will generate specific exciting forces to make the screen body perform continuous and periodic reciprocating motion. This reciprocating motion causes the material on the screen to be continuously vibrated and thrown, so fine particles and muddy water can be separated during the throwing process.
Model | Screen area （m2） | Mesh Size （mm） | Processing Capacity （t/h） | Vibration Time （min） | Motor Power （kw） | Dimensions （mm） |
TS-1230 | 3.6 | 0.25-50 | 40-60 | 960 | 2×2.2 | 3140×1640×1680 |
TS-1530 | 4.5 | 0.25-50 | 60-80 | 960 | 2×4 | 3083×1907×1484 |
TS-1840 | 7.2 | 0.25-50 | 100-120 | 960 | 2×15 | 4500×2470×3050 |
TS-2050 | 9 | 0.25-50 | 200-220 | 960 | 2×15 | 5600×2670×3230 |
TS-2450 | 11 | 0.25-50 | 220-250 | 960 | 2×18.5 | 5600×3070×3130 |
TS-2460 | 14.64 | 0.25-50 | 220-300 | 960 | 2×18.5 | 6600×3070×3130 |
TS-3060 | 18 | 0.25-50 | 280-350 | 960 | 2×22 | 6600×3670×3130 |
