Application Areas: Mining, building materials, infrastructure construction and other industries
The mobile impact crusher, also called mobile impact crusher, is equipped with high-performance impact crusher, high crushing efficiency, versatility, excellent crushing product quality, and light and reasonable structural design. Reliable and stable quality assurance, a wide range of coarse, medium and fine material crushing and screening requirements, has established a good quality reputation for new and old customers at home and abroad. It is not only mature in technology, easy to operate and maintain, but also has good adaptability and safety reliability for transportation volume, material particle size and abrasiveness. The integrated unit configuration is convenient and reasonable to install and maintain. The configured unit has high durability and higher working time.
According to different configurations, mobile impact crushers are divided into two categories: tire mobile impact crushers and crawler mobile impact crushers. Different impact crushers have different crushing effects, so they are also divided into coarse mobile impact crushers, medium and fine mobile impact crushers, and three-in-one mobile impact crushers.
1. Unit Integration
A complete set of strong performance, reasonable and compact combinations, and extremely low requirements for the work site.
2. Strong Manoeuvrability
The vehicle has a compact structure, a small turning radius, low requirements for road transportation conditions, and convenient and fast conversion, entry, and exit.
3. Energy Saving and High Efficiency
The mobile crusher plant can directly enter the raw material site to work, reducing the transportation link of raw materials and thereby saving the transportation cost of raw materials.
4. Diversity of Configuration
According to customers' different requirements and actual conditions, a variety of personalized unit configurations can be provided. These can be operated by a single machine or by multiple units to realize single-unit crushing, multi-unit joint graded crushing, and graded function combinations.
5. Generator Set Expansion Function
The mobile CF impact crusher plant can be equipped with a generator set to meet the normal operation requirements of complex situations, such as no power or power outage, to ensure continuous operation and production.
6. Technical Guarantee, Superior and Stable Performance
Nearly 40 years of mining equipment production technology and experience have created a simple, reasonable and compact vehicle structure for the mobile crusher plant. Multi-level strict factory inspection ensures the excellent quality of each product.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

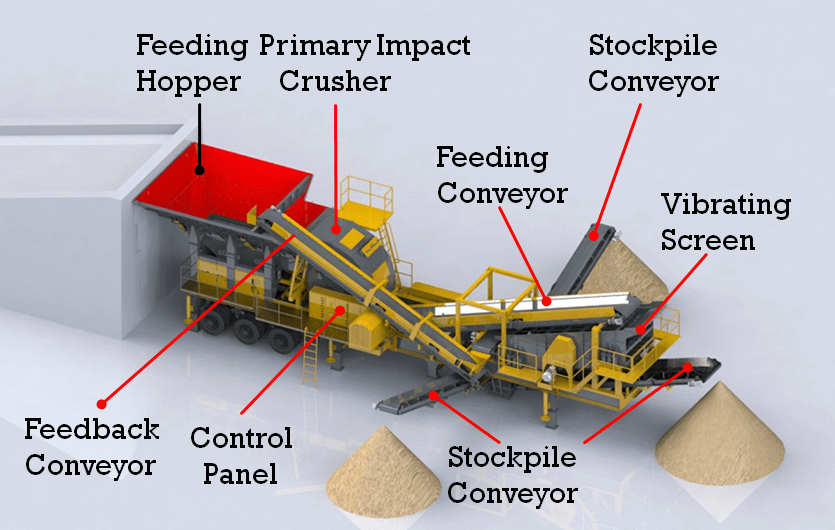

The mobile impact crusher station is driven by an external electric drive main engine and an auxiliary motor. After the material is evenly transported to the impact crusher by the feeder, it is crushed through a circular vibrating screen to form a closed-circuit system to achieve cyclic crushing of the material, and the finished material is output by the conveyor.
The mobile impact crusher can be "feeder + impact crusher + vibrating screen" or "impact crusher + vibrating screen". It can be specifically configured according to actual production needs to achieve direct crushing of broken materials, or used in conjunction with other crushing equipment for convenient and flexible operation.
Mobile CF Impact Crusher Plant Technical Parameters | ||||
Standard Model | Corollary Equipment | Adjustable Range of Discharge Opening (mm) | Capacity (t/h) | Overall Dimension (mm) |
SL15L | ZSW3896+CF150 | 40-100 | 100-200 | 11020x2200x4360 |
SL25L | ZSW4211+CF250 | 50-120 | 200-400 | 12615x2850x4360 |
SL35L | ZSW4213+CF350 | 50-200 | 300-500 | 12700x2900x4450 |
