Application Areas: Mining, metallurgy, construction, chemical industry, cement, refractory materials, ceramics and other industries
Combination mobile crusher plant is a new type of rock crushing equipment, greatly expanding the conceptual field of coarse and fine crushing operations. It is mainly used for material processing that often requires demolition operations such as metallurgy, chemical industry, building materials, water and electricity, etc., and is used on highways. For mobile stone operations such as railways, hydropower projects, etc., users can adopt a variety of configurations according to the type, scale, and finished material requirements of the processed raw materials. They can flexibly switch between coarse crushing and crushing and fine crushing, and the crushing ratio is greatly improved. It is currently an advanced and cost-effective crushing equipment in the field of crushing equipment.
 |
|
|
Short Transition Period
Compared with fixed production lines, the VPM-4 series mobile stations have a short project cycle and fast transition follow-up, reducing investors' investment risks and opportunity costs and avoiding demolition and construction work after the project is completed, making it more economical and environmentally friendly.
Centralized Control
An intensive hydraulic system controls all actions, allowing operators to set machine operation actions simply and quickly. At the same time, using centralized lubrication, operators can quickly complete maintenance operations directly on the road surface.
Auxiliary Equipment Optional
An iron remover, return, or plate feeding system can be selected according to customer needs.
Crushing Host Optional On-Demand
It has five machine models, comprehensively covering various mining production needs such as coarse, medium, and fine crushing, fine crushing, shaping and screening, fine crushing, sand washing, independent operation, three-combination, and four-combination.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

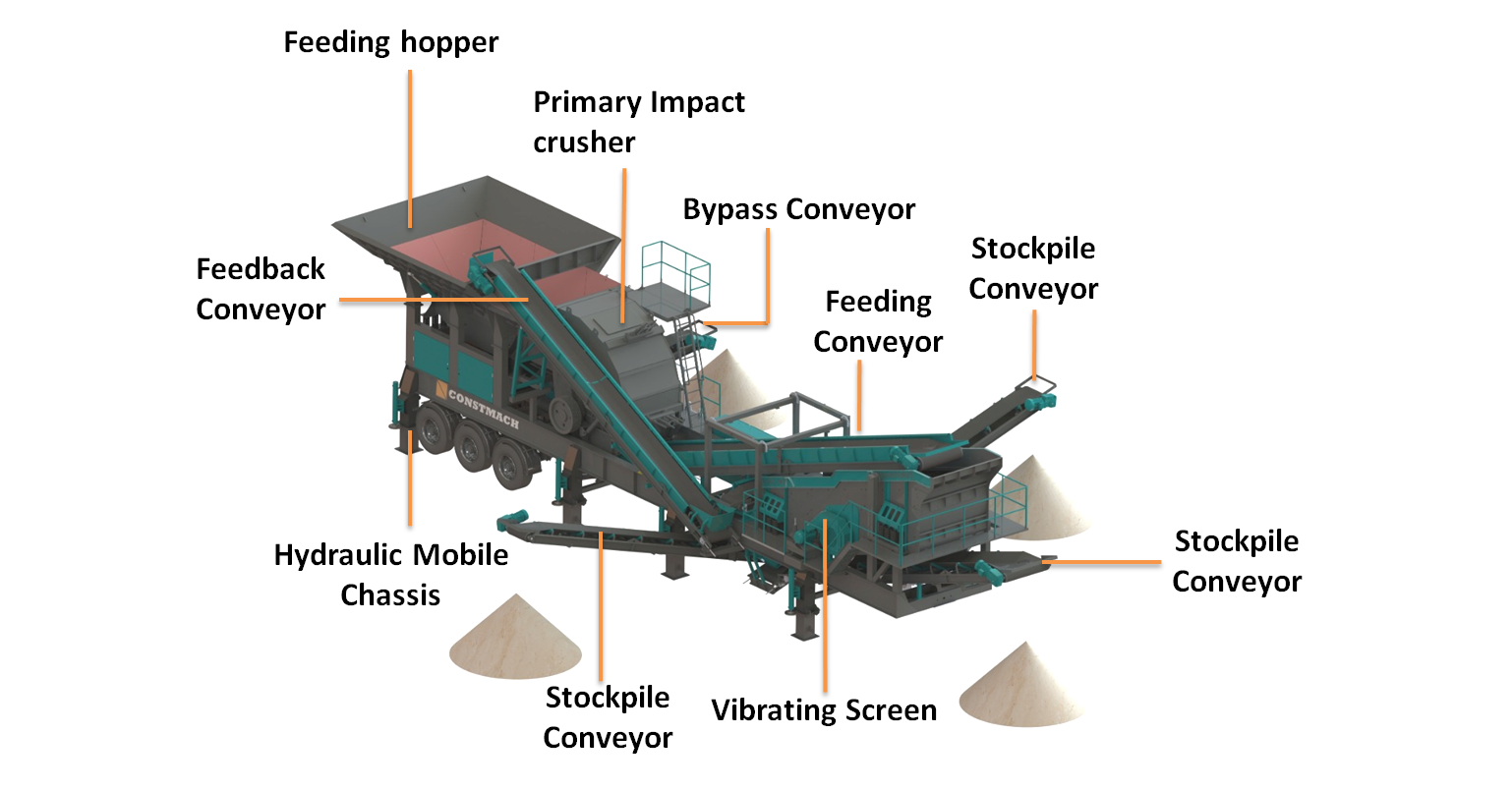

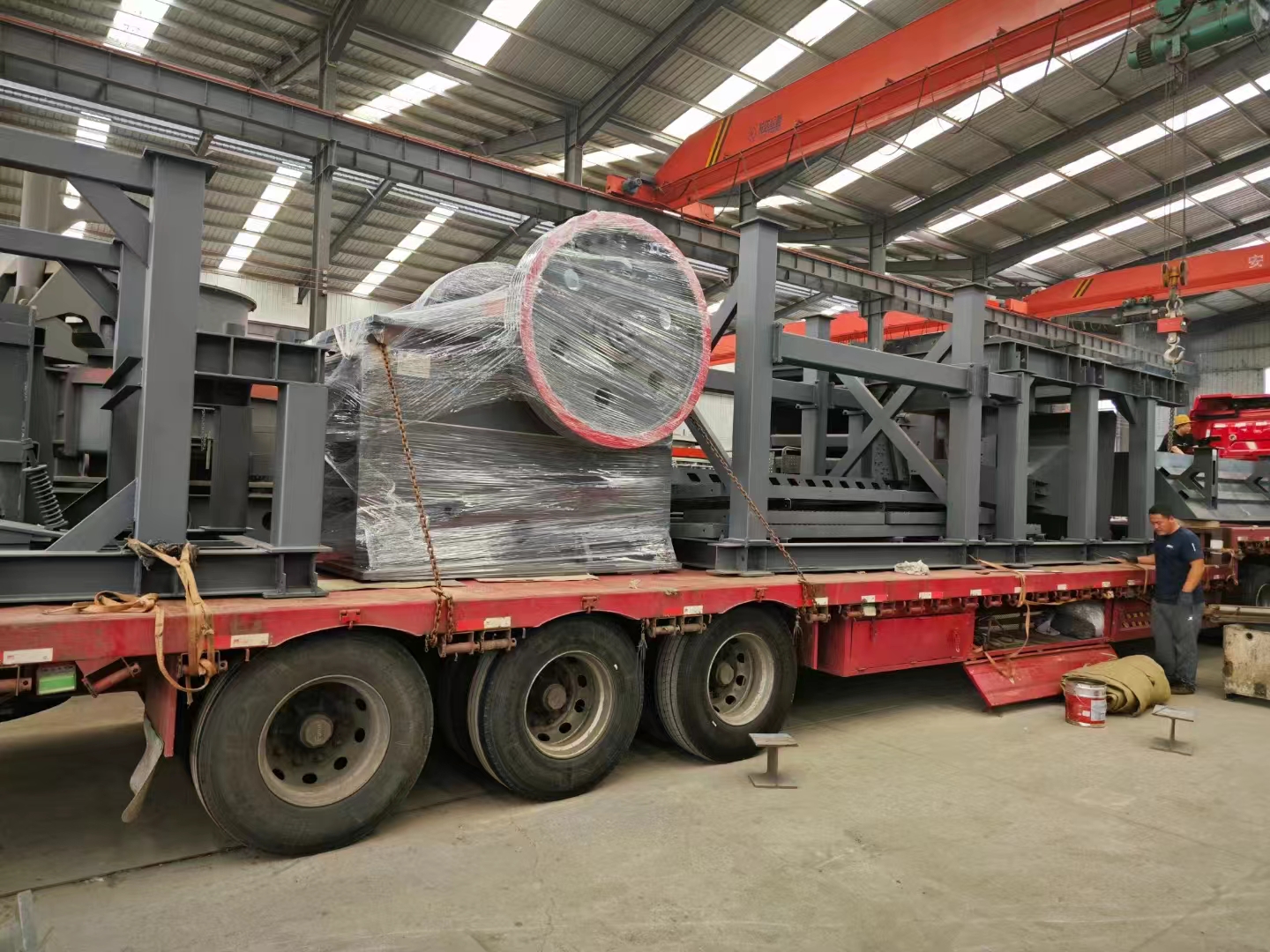

The four-combination mobile crusher plant has equipment such as a jaw crusher, impact crusher, cone crusher, and sand-making machine. It has the advantages of high efficiency, multi-functionality, lightweight and reasonable structural design, and excellent crushing performance. It can fully meet crushing and screening needs for coarse, medium, and fine materials. It has mature technology, easy operation and maintenance, and good adaptability, safety, and reliability. It can adapt to different transportation volumes, particle sizes, and wear properties. It is a domestic company that Provides high-quality mining crusher machinery products to foreign customers.
Model | Vibrating Feeder | Primary Crusher | Secondary Crusher | Vibrating Screen | Maximum Feed Size (mm) | Number Of Axes | Main Conveyor | Capacity(t/h) | Transport Size (mm) |
VPM4 PY600 | ZSW3090 | PE400×600 | PY600 | YA1237 | ≤340 | 3 | B650 | 16-65 | 15500x2800x4200 |
VPM4 PY900 | ZSW3090 | PE400×600 | PY900 | YA1548 | ≤340 | 3 | B800 | 16-65 | 16500x2850x4200 |
VPM4 CSV110 | ZSW3090 | PE500×750 | CSV110 | YA1848 | ≤425 | 3 | B1000 | 50-100 | 16500x2950x4200 |
VPM4 PY900 | ZSW3090 | PE500×750 | PY900 | YA1848 | ≤425 | 3 | B800 | 50-100 | 16500x2950x4200 |
VPM4 PF1010 | ZSW3090 | PE400×600 | PF1010 | YA1548 | ≤340 | 3 | B800 | 16-65 | 15500x2800x4200 |
VPM4 PF1210 | ZSW3090 | PE500×750 | PF1210 | YA1848 | ≤425 | 3 | B1000 | 50-100 | 16500x2850x4200 |
VPM4 PF1214 | ZSW3896 | PE600×900 | PF1214 | YA1848 | ≤500 | 3 | B1200 | 60-160 | 16500x2950x420 |
