Application Areas: Mining, building materials, infrastructure construction and other industries
Mobile heavy hammer crusher plant is a kind of free mobile crusher designed with innovative technology and excellent technology. It has complete functions, energy saving, stable and reliable, beautiful appearance, long service life and convenient operation. It can adapt to any terrain conditions and is widely used in urban construction, metallurgy, energy, environmental protection, Road and bridge construction and other fields.
1. Energy saving. Energy saving of single machine is more than 60%;
2. Equipped with excellent performance of the main equipment, crushing ratio, high efficiency, greater output, excellent effect;
3. The chassis part of the frame is compact in design, effectively shortening the transportation length by 30%, and designing a flexible parking function to ensure that the equipment can enter the working state rapidly.
4. The host of crushing station can be switched freely, which can better meet the different personalized needs of customers, realize the multi-purpose of one machine, and the operation and operation are more flexible and changeable;
5. The new centralized lubrication system and unified maintenance toolbox design make maintenance more convenient and save a lot of labor and time cost;
6. Strong quality, long life, strong adaptability to the environment, regardless of any harsh terrain, can be deep into all positions of the workplace;
7. Environmental protection, pollution-free is a major advantage of the equipment, mature design methods, to create an ideal, green production environment
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

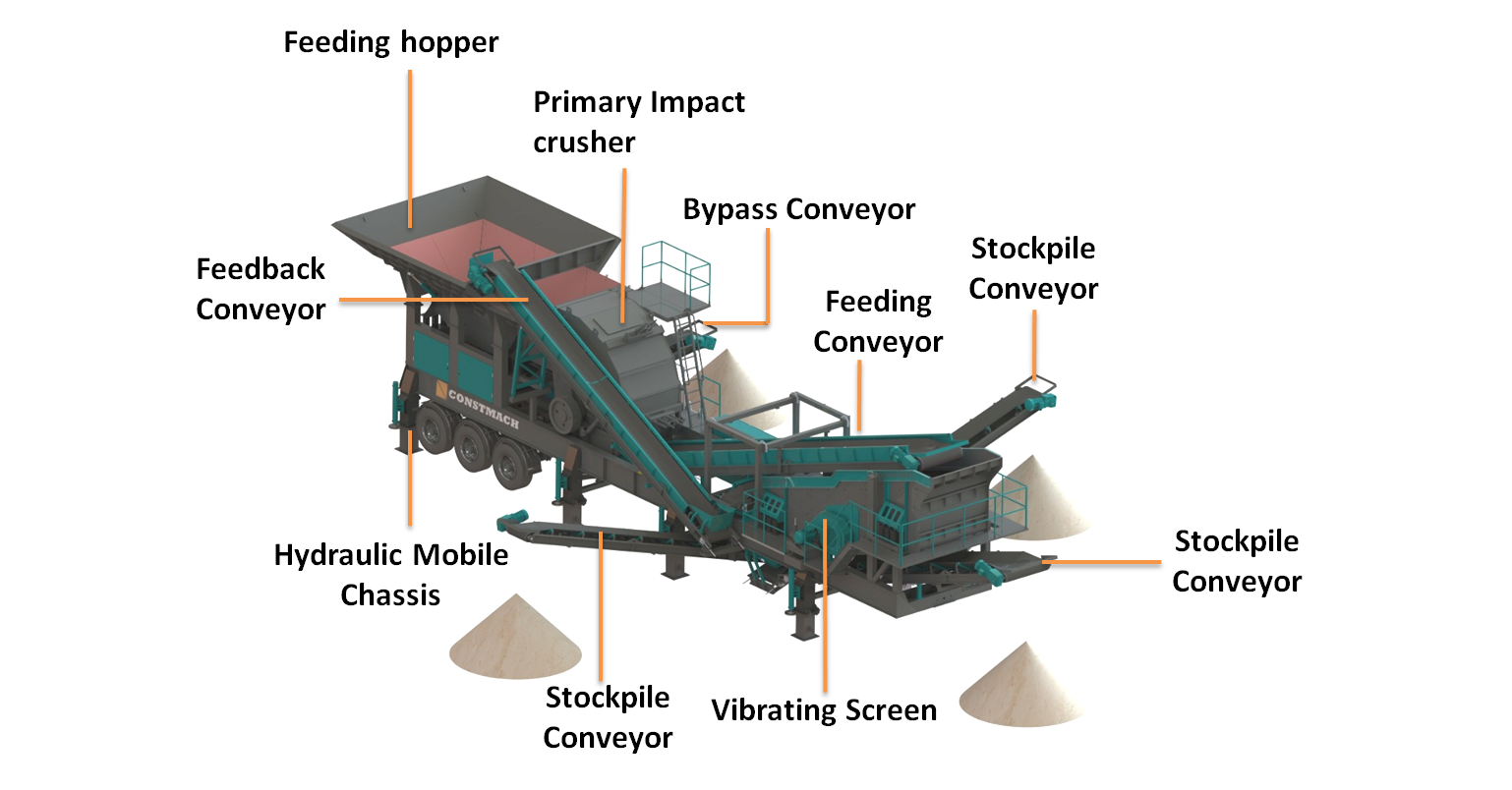

The structure design of heavy hammer mobile crushing station is compact and reasonable, and the structure composition is relatively simple. It is usually composed of crushing system, feeding system, screening system, conveying system, etc. Among them, the crushing system is the key of the crushing station, which is to crush the materials; the feeding system, therefore, is to feed the materials evenly and quantitatively into the crusher; the screening system is to screen the broken materials into different specifications; the conveying system naturally plays the role of connecting the crushing station. The crushing system of the crushing station can be divided into jaw crusher, impact crusher, hammer crusher, cone crusher and impact crusher according to the user's needs, which makes the assembling machine more free and convenient.
SMC Impact Crusher | SMC1010PFS | SMC1210PFS | SMC1214PFS |
Transport Size | |||
Length(mm) | 10800 | 12200 | 12500 |
Width(mm) | 2480 | 2743 | 2900 |
Height(mm) | 4170 | 4200 | 4200 |
Alex Weight(kg) | 15900 | 17200 | 22100 |
King Pin Weight(kg) | 11300 | 14300 | 17500 |
Impact Crusher | |||
Model | PF1010 | PF1210 | PF1214 |
Feed Opening(mm) | 400X1080 | 400X1080 | 400X1080 |
Vibrating Screen | |||
Model | 4YK1235 | 4YK1545 | 4YK1548 |
