Application Areas: Vertical compound crusher is widely used in mining, building materials, metallurgy, chemical industry and other industries. It is mainly used to crush various ores, building materials, metal ores and chemical raw materials. It also plays an important role in waste treatment and recycling to achieve resource reuse.

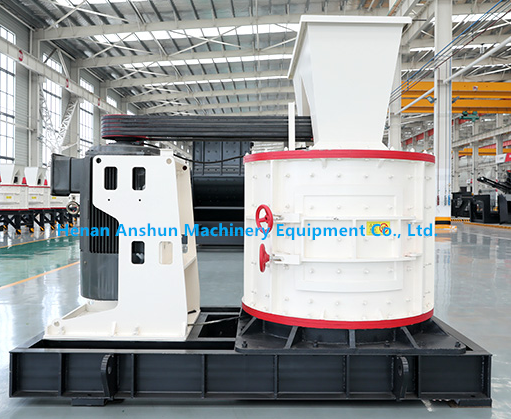

The vertical compound crusher is a new type of fine crushing and the coarse grinding product developed by integrating similar crusher technologies at home and abroad and has the advantages of impact crushing and hammer crushing. At the same time, the main technical parameters are optimized and designed. It is mainly used for small and medium-sized crushing of raw meal and clinker. The compound crusher has the characteristics of large crushing ratio, low energy consumption, stable operation, simple structure, convenient operation, and maintenance, etc, so it is a real multi-purpose, high efficiency, and low cost new crushing equipment.
1. High crushing rate, energy-saving, simple structure, and low-cost operation.
2. Compound crusher adopts the principle of rock-to-stone, which has the small wear.
3. It has the functions of fine crushing and coarse grinding, which is suitable for crushing medium-hard and extra-hard materials.
4. The working noise is lower than 75 decibels and the dust pollution is less.
5. Composite crusheris less affected by the moisture content of the material, and the moisture content can reach about 8%.
6. The finished products are cubes with high bulk density and minimal iron pollution.
7. The impeller has small wear and easy maintenance.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

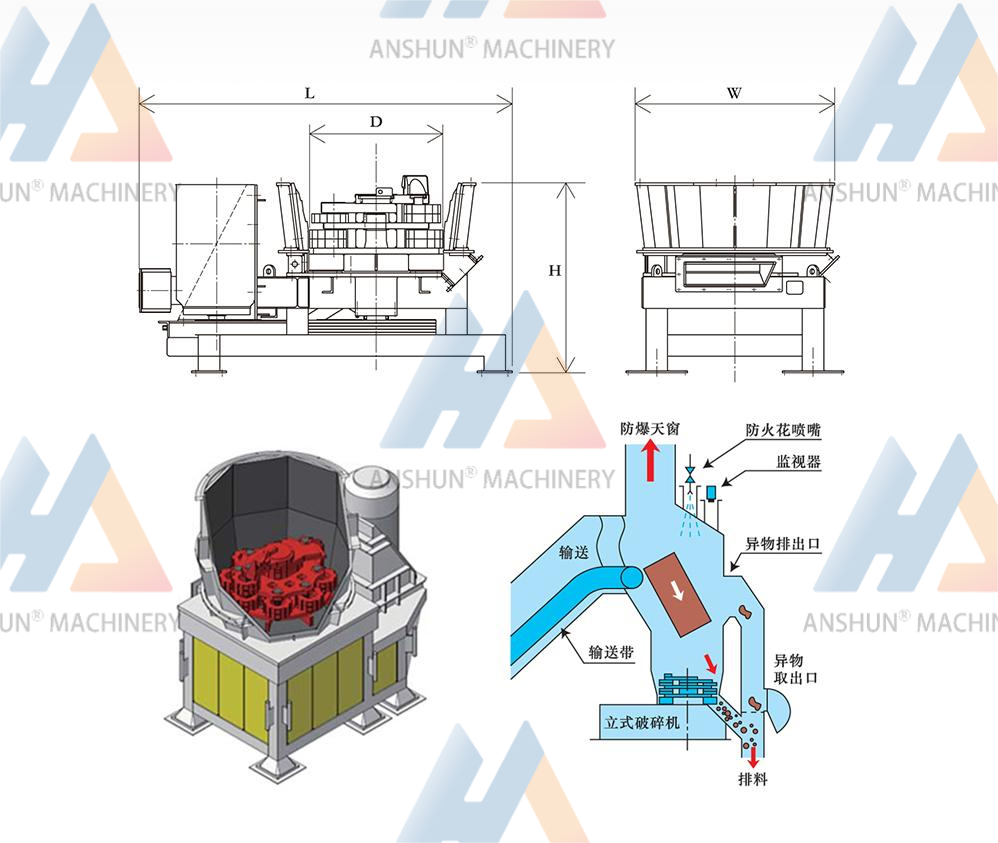

The material falls into the crushing cavity from the feed hopper under hitting by the high-speed rotary plate hammer, and then quickly throws it to the impact plate. After the impact, it is rebounded to the hammer plate and hit again. Such a high frequency of hits and impacts makes the material gradually crushed from large to small, and the smaller material falls into the lower crushing cavity, which is hit by the high-speed rotating dense hammer, and the upper crushing process is repeated. Due to the small cavity, the shear stress is applied between the hammerhead and the tooth edge of the impact plate to accelerate the fine crushing of the material. At the same time, the hammerhead with raw materials flows, which has a great grinding effect between each other, so that the material is further finely crushed until it is broken into the required particle size.
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter (mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height (mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed (r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size (mm) | 50 | 70 | 100 | 100 | 100 |
Output size (mm) | 0-5 | ||||
Capacity (t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power (kw) | 30 | 55 | 75 | 110 | 132 |
Rotor speed (r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight (t) | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Dimension (m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
